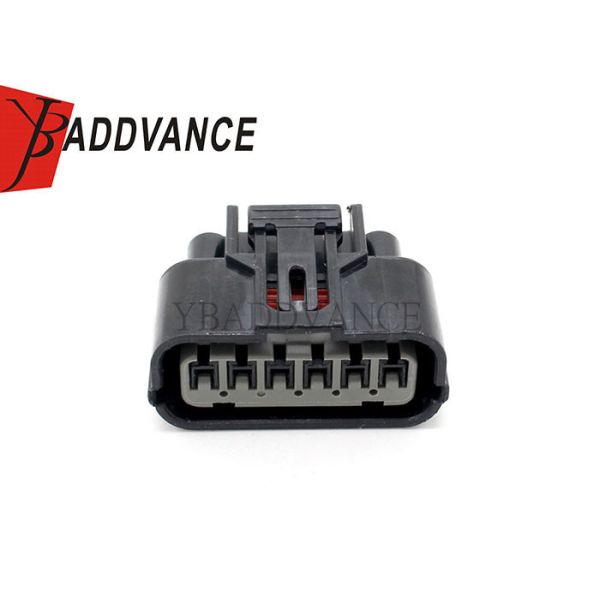

6189-1012 Sumitomo 6 Way HX Series Wiring Harness Loom Connector For Honda

Brand Name : YBADDVANCE

Model Number : 6189-1012

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 UNITS

Price : negotiation

Payment Terms : T/T, Western Union,paypal,credit card

Supply Ability : 50,000 units/month

Delivery Time : About 5-8 work days

Packaging Details : Inside packing：100 units/lot put into bags. Outside packing：carton 5 layers.

Part-No. : 6189-1012

Pin : 6 pin

STYLE : Sumitomo Connectors

Gender : Female connector

Color : Gray color

Sealed/Unsealed : Sealed

Gross weight : 2kgs/100pcs

Application : For Honda

Contact Now

6189-1012 Sumitomo 6 Way HX Series Wiring Harness Loom Connector For Honda


Description

This part come with the following types:

Length: 24.5mm
Width: 34.2mm
Height: 15.7mm
Original number:6189-1012
Material:Housing:PBT+G,PA66+GF;Terminal:Copper Alloy,Brass,Phosphor Bronze.
Male or Female:Female
Number of Positions:6 Pin
Color:Black
Operating Temperature range
-40℃~120℃
Function:Automotive Electrical Wiring Harness
Application: For Honda


Specification

Product Name6 Pin Automotive LED Light Lamp Connector
Delivery TimeAbout 3-7 days
Way 6 Way
Wire Size16-22AWG
P/N6189-1012
GenderFemale
MOQ100 units/lot
Sealed/UnsealedSealed
ColorGray
Gross weight1.5kgs/100 pieces
Shipping expressDHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL
Design AbilityPlease send us drawing or samples to design OEM&ODM
Operating Temperature range-40~120
Contact resistanceInitial8m Max.after durability tests16m Ma
Leak currentInitial50kPa Min.after durability tests30kPa Min.
Insulation resistance100MΩ Min.
IncludingConnector housing,terminals,rubber seals
Replacement BrandTE/AMP,Sumitomo,bosh,,kostal,FCI,FEP,furukawa and so on..
MaterialPBT,Plastic PA66,pbt gf30 and so on...



Hot products

Sumitomo ConnectorPin numberGenderApplication
6189-06474 PinFemaleFor T-PRS-Switch
6189-7396 / 90980-12A881 PinFemaleFor Lexus Toyota
6195-00388 PinDL 090 Female
6187-21712 PinFemaleFor Automotive
6189-0134 6918-03328 PinHW 090 Female
So on...........
Deutsch ConnectorPin numberGender
DTM06-3S-E0073 PinFemale connector
DTM06-2S-EE032 PinFemale connector
DT04-8P8 PinMale connector
DTM04-12P12 PinMale connector
So on...........
